Heat Pipe Exchanger Air To Air Heat Recovery Air Handling Unit

Working principle

When heating one end of the heat pipe, liquid heated evaporation (evaporation section), the steam flows to the other end under pressure difference (condenser section). Steam will condense and release heat in the condensing end. Heat transfers from high temperature to low temperature finished, condensate flows back to the evaporating end under the gravity. In the same way, liquid inside the heat pipe evaporates and condenses circularly, so, heat is transferred from high temperature to low temperature constantly.

Application

Heat pipe heat exchangers are suitable for air conditioning systems with slight dust content and high temperature.

Holtop HJK series Combined Air Handling Unit integrates the heat recovery core technology, and uses advanced technology to create the case structure that fully meets European standard performance. Rich function combination and all-round humanized design bring extraordinary experience to users.

Air handling

Unit-AHU

● Delicate Section Design of AHU Case

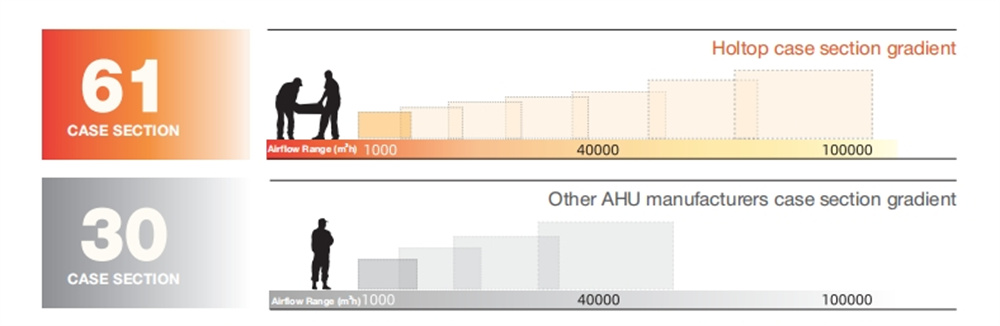

Holtop offers 61 standard AHU case sections to meet various air volume needs, with customized designs to ensure performance and compact size—saving cost and space. The design also adapts to varying supply and exhaust air ratios for different applications.

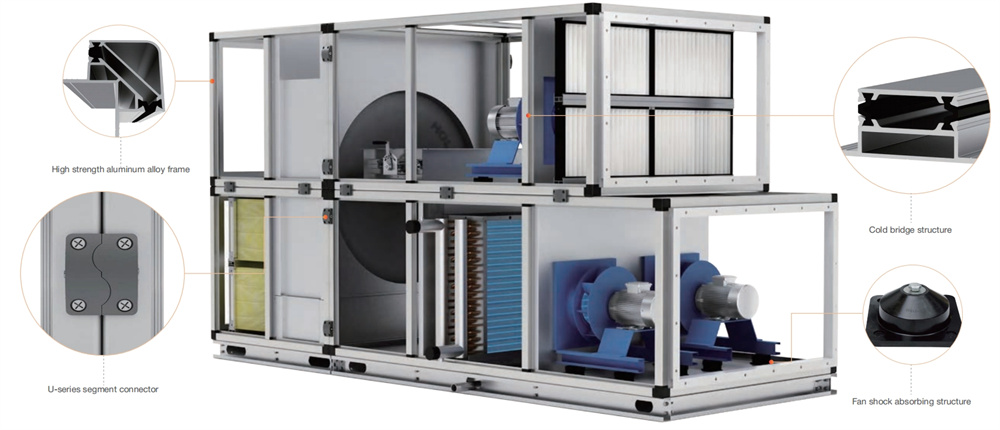

● Superior Mechanical Strength

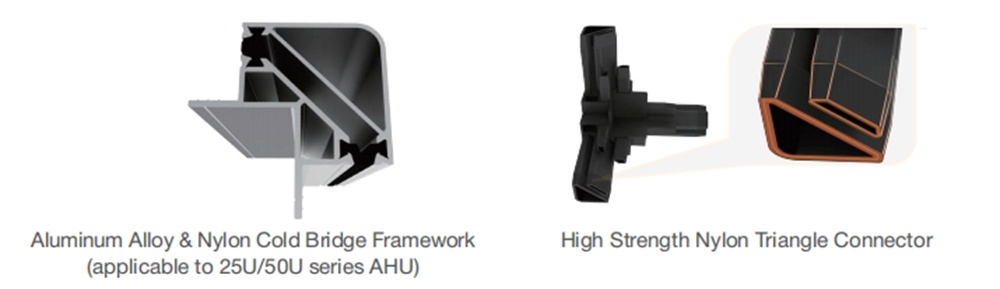

The 1.5mm T6 aluminum frame with nylon connectors ensures stability even for large units. HJK series units meet EN1886 D1 grade, with maximum deflection <4mm/m, as verified by a certified lab.

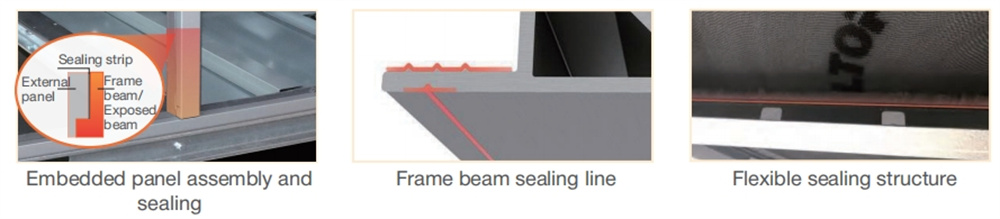

● Excellent Sealing

The embedded panel-frame structure allows easy maintenance while ensuring low air leakage. Polymer seals and carefully sealed doors and pipe passages guarantee excellent airtightness, meeting national air purification standards.

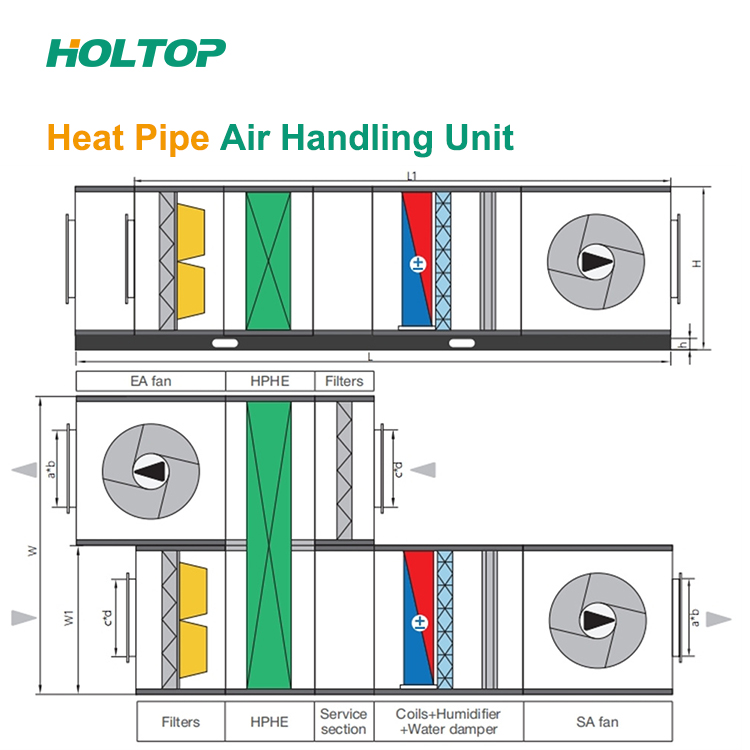

Air Handling Unit Design

FAN SECTION

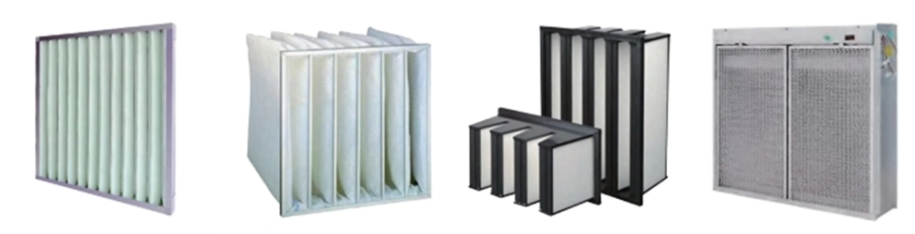

FILTER SECTION

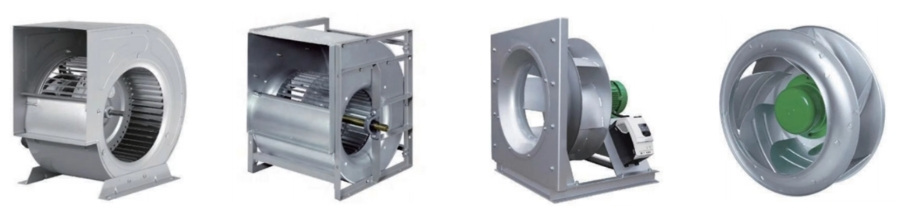

According to the requirements of air volume and static pressure value, one or more fans can be selected. The optional fans include direct-driven centrifugal fans, forward/backward centrifugal fans, plug fans, EC fans, etc. The fan impeller and belt pulley are corrected by static and dynamic balance, and the whole fan is corrected by running vibration, so that the operation is stable and reliable. The base of the fan and the motor is equipped with shock absorbers, the air outlet is designed according to the aerodynamic performance and has a soft connection with the case to effectively reduce the transmission of vibration.

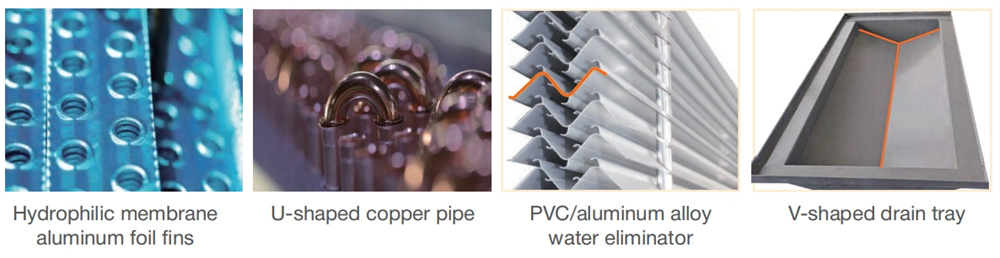

COOLING & HEATING COIL + HUMIDIFIER SECTION

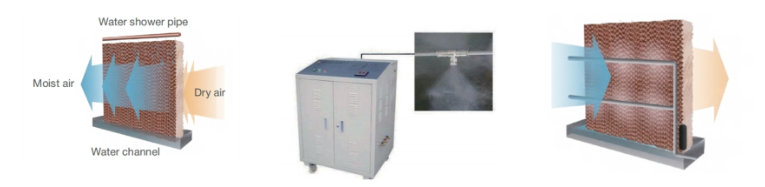

HUMIDIFIER SECTION
