The Pressure Cascade: The Foundation of Clean Room Contamination Control
For pharmaceutical manufacturers and clean room operators, the concept of a pressure cascade is fundamental to maintaining a sterile and safe production environment. In simple terms, a pressure cascade is a carefully engineered system of air pressure differences between adjacent rooms. The goal is to control the direction of airflow. In a standard aseptic processing facility, air must flow from the cleanest zone to the less clean zones. This outward flow of air acts as a physical barrier, preventing airborne particles from drifting into the critical filling area. In other scenarios, such as facilities handling potent compounds, the airflow must be reversed. The room must be kept under negative pressure to contain hazardous materials. Understanding the principles of pressure differentials, the regulatory requirements that govern them, and the engineering systems that maintain them is a cornerstone of clean room operation and compliance.
The Fundamental Principle of Directional Airflow
The pressure cascade is built upon a simple physical principle: air always moves from an area of high pressure to an area of low pressure. By creating a stepped gradient of pressure, engineers can force the air to move in a predetermined, predictable path. In a pharmaceutical clean room, the highest pressure is maintained in the most critical zone. As one moves outward through progressively less critical areas, the pressure is stepped down. This ensures that when a door is opened, the high-pressure air in the clean room flows outward, pushing potential contaminants away from the product. The pressure gradient is typically measured in inches of water gauge, a unit that measures very small differences in pressure. A minimum differential pressure is typically required to ensure stability and to overcome the slight turbulence created by the building's ventilation system. This cascade is not a single measurement; it is a continuous gradient that provides a robust and reliable barrier against contamination.
Regulatory Requirements and Industry Benchmarks
The design and operation of a pressure cascade are heavily regulated by global authorities. The ISO 14644-1 standard defines the cleanliness classifications for clean rooms, and the pressure hierarchy must be designed to support these classifications. EU GMP Annex 1, which is the definitive standard for sterile manufacturing in Europe, provides specific and detailed requirements. It mandates a minimum pressure differential between adjacent clean room grades. It also requires that this differential be monitored continuously, with alarms to alert operators if the pressure falls outside the acceptable range. The FDA, through its guidance on aseptic processing, reinforces these principles. It emphasizes that the pressure differentials must be demonstrated to effectively sustain unidirectional airflow and prevent the ingress of contaminants from lower-grade areas. These regulations are not arbitrary; they are based on decades of scientific evidence linking environmental control to product safety.

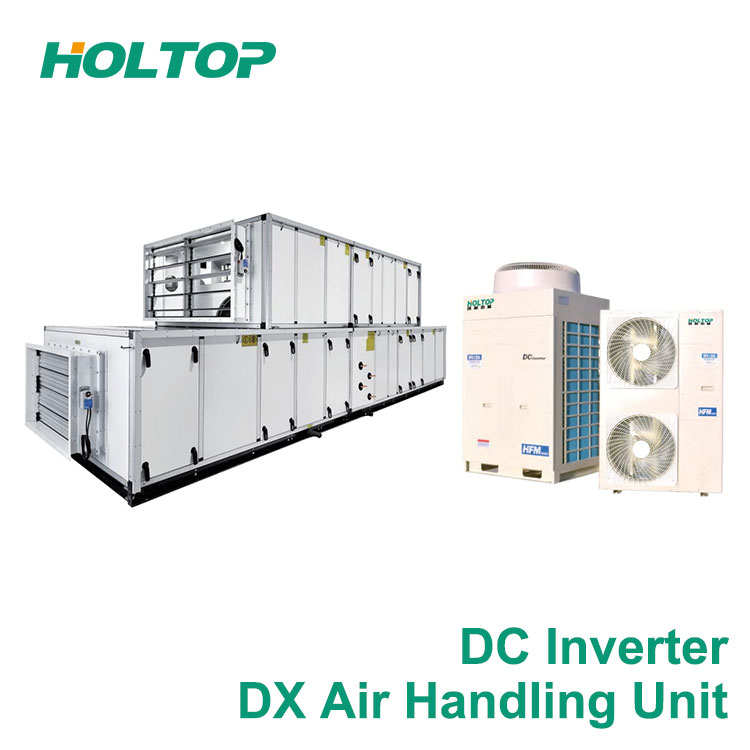

The Critical Role of HVAC Airflow Balancing
Maintaining a stable pressure cascade is a dynamic engineering challenge. The HVAC system must constantly balance the volume of air being supplied to a room with the volume of air being exhausted from it. If the supply volume drops, the room's pressure will fall. If the exhaust volume increases unexpectedly, the pressure will also fall. This balance must be maintained continuously, even as filter loading increases the resistance to airflow. Modern clean rooms utilize Variable Air Volume systems to achieve this dynamic balance. VAV systems use motorized dampers to adjust the supply and exhaust airflow in real time. These dampers are controlled by a central Building Management System, which receives data from highly accurate differential pressure sensors. When the BMS detects a deviation from the setpoint, it sends a signal to the VAV dampers to open or close, restoring the target pressure within seconds.
The Consequences of Exhaust Flow Imbalance
Despite the sophistication of modern control systems, exhaust flow imbalance remains one of the most common root causes of pressure excursions. Industry guidelines frequently cite issues such as leaking ductwork, uncalibrated fan speeds, or clogged exhaust grilles as primary contributors. In a negative-pressure containment suite, the exhaust must exceed the supply. If the exhaust fan slows down, the room may lose its negative pressure and become positive, which would allow hazardous materials to escape. In a positive-pressure zone, a surge in exhaust from process equipment can deplete the supply air, collapsing the differential and allowing contaminants to enter. Proactive detection of these issues requires routine testing of the airflow balance. Continuous monitoring of the exhaust flow in each zone provides valuable trend data that can reveal gradual degradation, allowing maintenance teams to intervene before a major excursion occurs.
Intelligent Control Strategies for Dynamic Stability
The response to a pressure disturbance must be fast and precise. The BMS achieves this through a closed-loop control system. High-accuracy differential pressure sensors, which can detect the smallest fluctuations, provide continuous data to the central controller. The controller compares this measured value against the defined setpoint. Any difference triggers an immediate, proportionally scaled response from the VAV damper actuators. This system operates on a continuous feedback loop, fine-tuning the airflow to keep the pressure perfectly stable. This level of control ensures that the clean room maintains its integrity not only during steady-state operation but also during transient events, such as a door opening.
Managing Door Events with Adaptive Control
Door openings are one of the most frequent disturbances to a pressure cascade. When a door opens, the pressure equalizes between the two adjacent zones, causing a temporary pressure drop. Static setpoint control systems can struggle to recover from these events. Adaptive control algorithms, however, are designed to anticipate and manage them. When the system detects a door event, it can temporarily widen the acceptable pressure range and command a more aggressive VAV response to counteract the pressure loss. Once the door closes, the system rapidly tightens its control parameters and returns the pressure to its target setpoint within a mandated time frame. This intelligent responsiveness prevents the pressure from remaining out of specification for too long and prevents alarm fatigue.
Airlock Sequencing and Transient Recovery
The design of the airlocks is critical for managing pressure transients. Electronic interlocking systems are used to prevent two adjacent doors from being opened at the same time. This ensures that the pressure cascade is never directly bridged. After a door closes, the system must restore the target pressure differential within a short time. High-speed door actuators are often used to minimize the duration of the pressure drop, and the VAV system works to compensate for the lost air volume. The interlock system also prevents the subsequent door from being opened until the pressure has been fully restored and the required air change-based purge time has elapsed. This protocol blocks transient contamination pathways and ensures the integrity of the aseptic envelope.
The Importance of Real-Time Monitoring
Continuous, real-time pressure monitoring is a regulatory requirement. The system must display, record, and alarm on the pressure differentials. The data is time-stamped and retained for audit purposes. If a deviation occurs, the alarm must be immediately visible and audible. The calibration of the pressure sensors is also critical. Regular calibration ensures that the readings are accurate and that the system is not responding to false signals.
How Quality Manufacturing Supports the Clean Room Envelope
The long-term reliability of a clean room pressure control system depends on the quality of its components. The precision of the VAV dampers, the accuracy of the pressure sensors, and the integrity of the ductwork all contribute to the system's ability to maintain the cascade. Manufacturers who adhere to recognized quality standards, such as ISO 9001, subject their equipment to rigorous performance testing and calibration verification before it leaves the factory. For a facility manager who depends on the clean room to produce sterile products, partnering with a disciplined, quality-focused manufacturer provides the ultimate confidence that the pressure cascade will remain robust and compliant.
