Natural and Hybrid Ventilation Strategies for Large Commercial Buildings
For building owners and facility managers, the ventilation system is a significant consumer of energy. Standard mechanical systems operate at full capacity regardless of the outdoor conditions, which leads to substantial waste during mild weather. A more intelligent approach, known as hybrid or climate-adapted ventilation, seeks to exploit the natural forces of wind and buoyancy to provide fresh air and cooling whenever possible. This strategy does not eliminate the mechanical system; it integrates it with natural ventilation. During moderate weather, the building uses operable windows and passive vents to draw in fresh air. During extreme heat or cold, or when outdoor air quality is poor, the mechanical system seamlessly takes over. This dynamic interplay significantly reduces the energy consumption of the ventilation system while maintaining a healthy and comfortable indoor environment. Understanding the principles of natural ventilation, the role of simulation and control systems, and the integration of energy recovery is essential for designing a truly efficient building.
Assessing the Natural Ventilation Potential
The first step in designing a hybrid ventilation system is a rigorous analysis of the local climate. It is not enough to know the average temperature. The designer must understand the wind speed and direction, the daily temperature swings, and the humidity patterns. In a cool, maritime climate, for example, nighttime ventilation can be used to flush out the heat that accumulates during the day. This process pre-cools the building for the following day, reducing the cooling load on the mechanical system. The natural ventilation potential index is a metric that quantifies how many hours per year natural ventilation is viable. This data guides the early-stage design decisions, ensuring that the building is oriented correctly and that the openings are sized appropriately. Without this data-driven assessment, the system may be oversized, leading to unnecessary capital costs, or undersized, which would compromise occupant comfort.
Designing for Stack and Cross-Ventilation
Effective natural ventilation relies on two primary driving forces: stack effect and wind pressure. Stack effect is driven by buoyancy. Warm indoor air is less dense than cool outdoor air and naturally rises. In a multi-story building, this warm air can exit through high-level openings, such as roof vents or a central atrium. As the warm air exits, it draws fresh, cool air in through lower-level inlets. Cross-ventilation, on the other hand, is driven by wind pressure. When wind strikes a building, it creates a high-pressure zone on the windward side and a low-pressure zone on the leeward side. By strategically placing operable windows on both sides of the building, the designer can harness this pressure difference to drive airflow through the occupied space. The most effective designs combine both principles, using a central atrium as a thermal chimney while perimeter offices benefit from cross-ventilation. Computational fluid dynamics modeling is used to validate the design, ensuring that the airflow patterns are optimal and that thermal comfort is maintained.
Sizing the System with Dynamic Simulation
In the past, ventilation systems were sized using rules of thumb that often resulted in oversized equipment. This approach wastes energy and capital. Modern design practice relies on dynamic simulation. This software models the building's thermal performance on an hour-by-hour basis, accounting for the climate, the occupancy schedule, and the internal heat gains. By simulating thousands of operating scenarios, the engineer can determine the precise ventilation requirements. For example, a large shopping center may need a high rate of fresh air on a busy Saturday afternoon, but a much lower rate on a quiet Monday morning. By sizing the system to meet the demand for most of the year, rather than the absolute peak, the engineer can reduce the installed capacity significantly. This right-sizing reduces the first cost of the equipment and improves the efficiency of the system at part-load conditions.
Meeting ASHRAE 62.1 with Demand-Controlled Ventilation
The ASHRAE 62.1 standard establishes the minimum ventilation rates required for acceptable indoor air quality. However, the prescriptive values in the standard assume that the space is fully occupied, which is rarely the case in reality. Demand-controlled ventilation is a strategy that bridges this gap. By using CO₂ sensors to monitor the actual occupancy of the space, the system can modulate the outdoor air intake in real time. When the space is only partially occupied, the system reduces the ventilation rate, saving fan energy and reducing the load on the conditioning equipment. The control logic must be carefully programmed to ensure that the per-person ventilation rate never falls below the minimum required by ASHRAE 62.1. This strategy ensures that energy savings are achieved without compromising indoor air quality.
The Power of Smart Zoning
Modern ventilation systems achieve peak efficiency by dividing the building into independently controlled zones. Each zone is monitored by a network of CO₂, temperature, and occupancy sensors. When a zone is unoccupied, the system automatically closes the dampers, redirecting the conditioned air to areas where it is needed. This eliminates the waste of ventilating empty conference rooms or corridors. Adaptive control algorithms can learn the occupancy patterns of the building and adjust the ventilation setpoints proactively. For example, the system can pre-condition a meeting room fifteen minutes before a scheduled event, ensuring that the space is comfortable when the occupants arrive. This smart zoning approach transforms the ventilation system from a static infrastructure into a dynamic, responsive network.

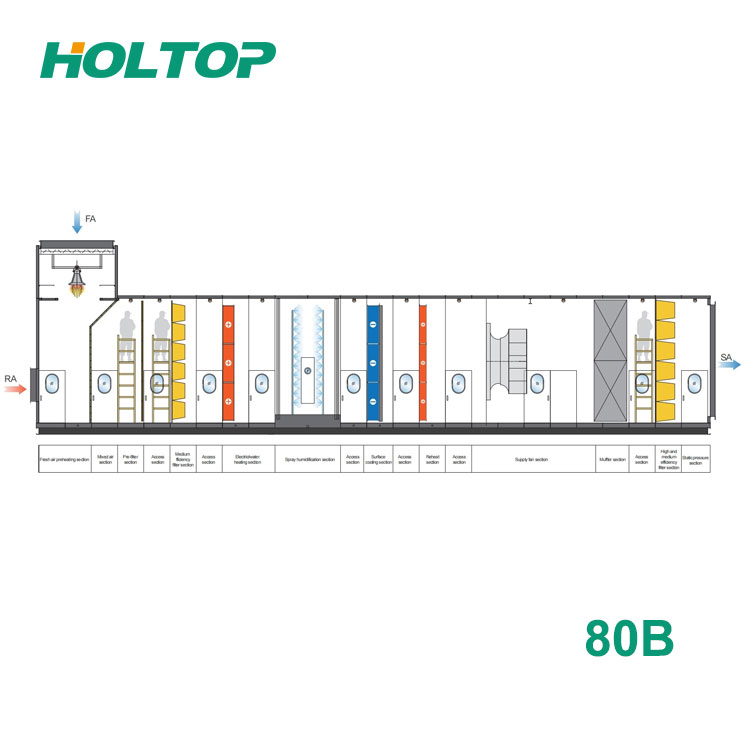

Integrating Energy Recovery for Maximum Efficiency
The final piece of the efficiency puzzle is energy recovery. An energy recovery ventilator captures the thermal energy from the exhaust air and transfers it to the incoming fresh air. This process preconditions the outdoor air, reducing the load on the heating and cooling equipment. The choice between a heat recovery ventilator, which transfers only sensible heat, and an energy recovery ventilator, which transfers both sensible and latent heat, depends on the climate. In humid climates, latent heat recovery is valuable for moisture control. In cold, dry climates, sensible recovery is sufficient. A well-selected energy recovery unit can recover a significant portion of the energy that would otherwise be lost. This directly reduces the annual HVAC energy consumption.
How Quality Manufacturing Ensures Long-Term Performance
The long-term performance of a hybrid ventilation system depends on the quality of its components. The airtightness of the dampers, the efficiency of the energy recovery wheel, and the reliability of the CO₂ sensors all contribute to the system's ability to maintain comfort while saving energy. Manufacturers who adhere to recognized quality standards, such as ISO 9001, subject their equipment to rigorous performance testing before it leaves the factory. For a building owner who is investing in a ventilation system to reduce operational costs and improve occupant comfort, partnering with a disciplined, quality-focused manufacturer provides the ultimate confidence that the investment will deliver its promised return.
