How Floor-by-Floor Air Handling Enables Targeted Climate Control

Vertical Zoning Through Independent Floor-Level Air Supply

When buildings handle air on a floor by floor basis, they create separate temperature zones for each level instead of the old method where the whole building gets treated the same way from above. Each floor has its own air supply system, which means we can zone vertically according to how people actually use spaces, what kind of equipment is running there, and how much sun hits different parts of the structure. This matters especially in tall buildings. The upper floors get around 40 percent more heat from sunlight compared to ground level areas, so cooling needs vary quite a bit between floors. Without all that mixing between floors, building managers can fine tune things pretty precisely. They might cool down server rooms without making nearby offices too cold, or boost airflow in meeting rooms when they're packed full during business hours. Another benefit? It stops problems from spreading through the building. If one floor gets too hot or too cold, it doesn't force the entire system to compensate everywhere else.

The Role of Thermal Stratification in Precision Cooling

The way warm and cool air naturally separates becomes really useful in those floor by floor underfloor air distribution systems. Cool air comes out from under the floor at around 18 to 19 degrees Celsius and settles down where people actually work, which is typically between ground level and about two meters high. When things inside generate heat, they warm up the air around them, causing it to rise towards the ceiling vents. This creates a pretty consistent temperature difference from bottom to top. The whole thing works on basic physics principles, making cooling much more efficient since we're focusing energy exactly where humans need it most. Plus, fans don't have to work as hard because of natural air movement. Desk areas stay comfortable at 22 to 24 degrees while ceilings can get quite warm, sometimes reaching 28 or even 30 degrees. Studies done by ASHRAE show that when this stratification effect is properly handled, buildings save anywhere from 25% to 30% on their cooling costs compared to traditional mixed air systems. That's mainly because there's no point in cooling all that empty space above where nobody sits anyway.

Case Study: 24-Story Office Tower in Singapore Using Floor-Specific UFAD Plenums (NEA 2022 Benchmark Data)

A 24-story commercial tower in Singapore implemented floor-specific UFAD plenums with independently pressurized zones and variable air volume (VAV) dampers responsive to real-time occupancy sensors. Per the National Environment Agency’s 2022 benchmark study:

The project achieved 32% fan energy savings by eliminating ductwork friction losses and reducing static pressure requirements. Temperature uniformity across floors improved by 40%, with hot spots virtually eliminated—even during peak solar loading periods.

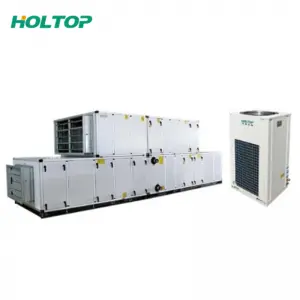

System Integration: Air Handling Units and Underfloor Plenums

Architectural Alignment: AHU Integration with UFAD for Floor-by-Floor Air Handling

When combining Air Handling Units (AHUs) with Underfloor Air Distribution (UFAD), architects need to carefully coordinate several structural aspects. They must align things like floor cavities and vertical chases so both systems fit together without compromising ceiling height requirements. Getting this right creates straightforward airflow paths from the AHUs directly into the underfloor plenums, which means we can skip all that complicated ductwork normally needed. According to industry standards, buildings that integrate these systems typically see around an 18% drop in mechanical installation expenses. Plus projects tend to move faster since there's less mechanical space required overall. Putting AHUs at floor level gives facility managers something really valuable too fine grained control over different thermal zones. This allows them to adjust temperatures specifically for each tenant area or based on how occupied spaces actually are, without worrying about affecting other floors above or below.

Modular AHUs and Pressure-Regulated Plenums: A Modern Standard (ASHRAE RP-1794 Findings)

When it comes to efficient air handling on individual floors, modular AHUs combined with pressure regulated plenums have become the standard for top performance. These factory made units work well across different building layouts without losing grip on static pressure levels, usually staying within about 5% of target values. According to studies from ASHRAE's RP-1794 project, these systems slash fan energy usage by around a quarter compared to older methods. What makes them stand out is how smart they are about space utilization. The plenum system automatically adjusts based on who's actually in the area, pumping more air when people show up and dialing back when offices empty out at night. This prevents wasting energy on blowing air into empty rooms and saves building operators roughly 19 cents per square foot monthly in tall buildings. Maintenance crews appreciate the standardized parts too. Replacing components takes about four hours instead of the usual twelve or more with conventional systems, which means less downtime and happier facility managers.

Energy Efficiency and Thermal Stratification in Floor-by-Floor UFAD Systems

Reducing Fan Energy by 22 to 35% Through Floor-Level Air Distribution (DOE LBNL Report 2023)

UFAD systems installed floor by floor take advantage of how heat naturally moves through buildings to save energy. When cool air is pushed up from the floor level through those little vents, it stays down where people need it most while warm air just floats up and gets sucked out near the ceiling. The temperature difference alone matters a lot too - these systems can run at around 17 to 18 degrees Celsius instead of the usual 13, which cuts down on cooling needs by roughly 20 to 30 percent according to calculations. A recent study from LBNL in 2023 showed something interesting about airflow patterns specifically within floor plenums. They found that better airflow actually means less pressure inside the system, so fans don't have to work as hard. This translates into about 22 to 35% less energy consumption for fans compared to traditional overhead setups. What really helps here are shorter distances for air movement, slower running fans, and those modular plenum designs that keep everything balanced without needing much extra power. Most importantly though, the whole system concentrates on heating and cooling just the bottom third of any space since that's where actual work happens. This targeted approach saves money on operating costs without making anyone uncomfortable. Combine good old physics with smart system design and what do we get? A pretty impressive model for green buildings that perform exceptionally well.

FAQ

What is floor-by-floor air handling?

Floor-by-floor air handling is a system that manages the air supply for each level of a building separately, enabling more precise control of temperature and airflow.

How does thermal stratification contribute to energy savings?

Thermal stratification utilizes the natural rise of warm air to enhance cooling efficiency by concentrating air conditioning efforts where occupants are, thereby reducing energy costs.

What benefits did the Singapore office tower experience by using UFAD?

The tower saw a 25.4% reduction in energy use, a 43% increase in occupant comfort, and improved ventilation efficiency by 22 points.
