The Basics of Setting Up a cleanroom

Understanding Cleanroom Fundamentals and Key Applications

What is a cleanroom and why is it essential in controlled environments?

Cleanrooms represent specially designed environments meant to keep out airborne particles like dust, bacteria, and chemical fumes while following guidelines set by standards organizations such as ISO 14644. These specialized areas matter a lot for certain industries because tiny bits of contamination can ruin entire batches of products. Take semiconductors for instance anything bigger than 0.5 microns floating around during production might lead to expensive mistakes according to recent research from ISO in 2023. To maintain this level of cleanliness, facilities typically install sophisticated air filters, create pressure differences between rooms, and enforce rigorous rules about how people move through these spaces. All these measures work together so manufacturers get reliable results without unwanted impurities messing things up.

Key industries relying on cleanroom technology: pharmaceuticals, semiconductors, and biotechnology

Three sectors are primary users of cleanroom technology due to their stringent precision requirements:

• Pharmaceuticals: Sterile conditions are mandatory for producing injectables and vaccines, where microbial contamination poses direct patient safety risks.
• Semiconductors: Microchip fabrication requires ISO Class 1–3 environments to prevent nanometer-scale defects on silicon wafers.
• Biotechnology: Processes like gene editing and cell therapy depend on ultra-clean conditions to preserve sample integrity.

These industries implement ISO classifications and optimized air-change rates to balance contamination control with operational efficiency.

Cleanroom Classification Systems and Air Change Requirements

Effective contamination control begins with understanding cleanroom classifications and their corresponding air handling requirements. These standards ensure consistent performance across high-precision industries.

ISO Cleanroom Classifications (ISO 1–9) and Their Particle Count Limits

The ISO 14644-1 standard defines nine cleanliness classes based on airborne particle concentration. At the highest level, ISO Class 1 permits 12 particles/m³ at 0.3µm, while ISO Class 9 allows up to 1,020,000 particles. Higher classes demand increasingly rigorous controls:

Comparing ISO 14644 Standards with FS 209E and Application in Pharmaceutical Grading (Grade A, B, C, D)

The old FS 209E standard relied on imperial units and those federal class labels we all know and love, while ISO 14644 has moved completely to metric measurements and international language. Pharmaceutical facilities typically work with these hybrid grading systems. Let's look at some specifics. Grade A spaces, which correspond to ISO 5 classification, are where the really sensitive stuff happens like filling vials. These areas need between 240 and 480 air changes every hour. Contrast that with Grade D zones rated at ISO 8 level. For lower risk activities, they get away with just 10 to 25 air changes per hour. Makes sense when considering what kind of contamination risks each area faces.

Air Changes Per Hour (ACH) by ISO Class and Their Impact on Contamination Control

Airflow velocity and frequency directly influence contamination removal. Optimal ACH values balance cleanliness with energy efficiency:

Exceeding recommended ACH levels offers diminishing returns and increases energy consumption, highlighting the importance of class-specific HVAC design.

Airflow Design, Pressure Control, and Filtration Systems

Principles of Unidirectional vs. Non-Unidirectional Airflow in Cleanrooms

In cleanrooms rated at ISO Class 5 or better, we see something called unidirectional airflow where HEPA filtered air moves in straight lines rather than swirling around. This setup helps keep things super clean which matters a lot when making semiconductors or filling medicine vials under sterile conditions. For spaces rated lower like ISO Classes 7 through 9, most facilities go with non-unidirectional or turbulent airflow instead. These systems work by basically flushing out particles through constant air mixing and they tend to be cheaper options for areas where absolute purity isn't so critical. According to research published last year on cleanroom designs, switching from turbulent to unidirectional airflow cuts down airborne contamination levels by almost nine tenths in similar ISO 8 settings. That kind of difference makes all the extra investment worthwhile for many manufacturers concerned about product quality.

Recirculating vs Single-Pass Airflow Systems: Efficiency and Cost Implications

Around 80 to 90 percent of filtered air gets reused in recirculating systems, which cuts down on HVAC energy expenses quite a bit actually about 34% according to ASHRAE from last year. On the flip side, single pass systems basically throw away all that conditioned air. These tend to be the go to choice whenever dealing with dangerous stuff or substances that can easily catch fire. Take biotech cleanrooms for instance where these kinds of compounds are being worked with regularly. The labs typically opt for single pass setups because they want zero risk of contamination between different batches or experiments. But there's definitely a price tag attached to this safety measure. Running those single pass systems costs roughly $12.50 per square foot each month compared to just $7.20 for the recirculating ones. That adds up fast over time especially for larger facilities.

Maintaining Pressure Differentials to Prevent Cross-Contamination

Cleanrooms maintain a positive pressure of +10–15 Pa relative to adjacent areas, with cascading gradients ensuring airflow moves from cleaner to less clean zones. Facilities maintaining <10% pressure variance reduce particle ingress by 63% (IEST-RP-CC006.3 guidelines). EU GMP now requires automated pressure monitoring with real-time alerts in Grade B–D pharmaceutical areas.

Designing Airlocks for Personnel and Materials to Sustain Pressure Zones

Airlocks with interlocking doors and 15–30 second purge cycles help preserve pressure integrity. Best practices include:

• Material airlocks: Pass-through chambers with UV sanitization for tools
• Gowned personnel airlocks: Ante rooms equipped with sticky mats and HEPA showers
  A 2024 survey found that dual-stage airlocks reduced contamination incidents by 41% compared to single-stage designs.

Role of HEPA and ULPA Filters in Achieving ISO-Compliant Air Purity

HEPA filters manage to trap around 99.97% of particles measuring 0.3 microns, whereas ULPA filters go even further reaching approximately 99.999% efficiency for particles as small as 0.12 microns. This makes them suitable for meeting those tough ISO 14644 standards that many industries demand. According to a study published by Fuji Electric last year, switching to ULPA filtration can cut down on semiconductor wafer defects by nearly 18% within ISO class 3 cleanrooms when compared against facilities relying solely on HEPA filters. When choosing between different filter options, it's important to consider how they fit with overall air change rates. For example, most ISO 5 cleanrooms need somewhere between 240 and 600 air changes per hour, which usually means incorporating pre-filters rated between MERV 17 and 20 to support the main filtration system effectively.

Construction Materials and Interior Surface Standards

Non-shedding, easy-to-clean surfaces: stainless steel, epoxy coatings, and seamless panels

In cleanroom environments, surfaces need to stop both particle shedding and microbial growth to meet those important ISO 14644 and GMP requirements. Most facilities go with stainless steel because it lasts longer and can be welded seamlessly without gaps. For floors and walls, antimicrobial epoxy coatings help keep biological contaminants at bay. The panels themselves are usually seamless with rounded corners made either from aluminum composites or fiberglass reinforced plastic. These designs get rid of those pesky little crevices where dust and microbes love to hide. What's really crucial though is how these materials handle strong disinfectants such as hydrogen peroxide vapor. This matters a lot in pharmaceutical Grade A/B areas where they set super strict microbial limits below 1 colony forming unit per cubic meter according to PDA guidelines from 2022.

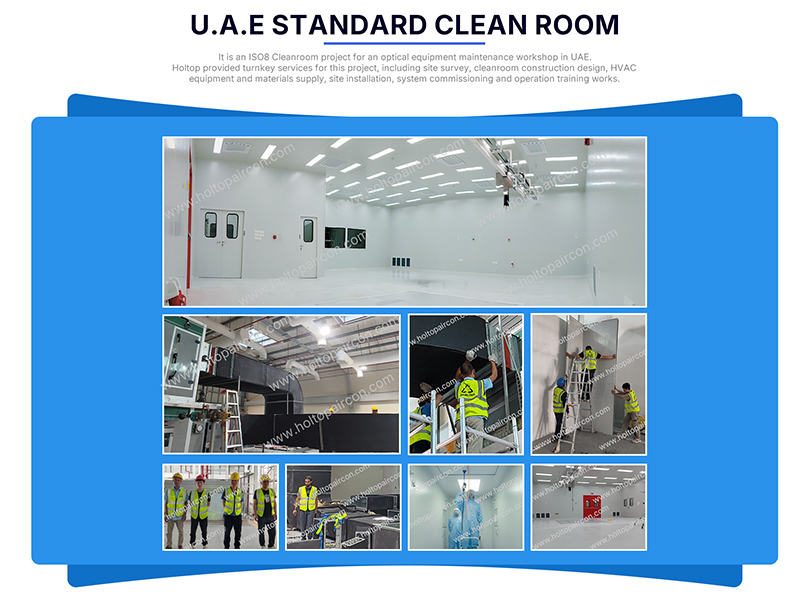

Cleanroom layout and integration of walls, ceilings, and flooring systems

Good facility design brings together walls, ceilings, and floors as part of a complete contamination control strategy. The ceiling grid with those HEPA filters works hand in hand with the return vents mounted on walls to create that smooth laminar airflow pattern everyone talks about. For flooring, specs often call for materials such as vinyl or epoxy resin to be built up about six to eight inches along baseboards what we call coving this helps get rid of those sharp corners where dust and other particulates tend to accumulate. Semiconductor cleanrooms take this even further with their raised access floors featuring perforated tiles. These setups can push through anywhere from fifty to seventy air changes every hour, which is pretty much required if they want to meet those strict ISO 5 through 6 standards for cleanliness.

Modular vs. hard-wall cleanroom construction: evaluating cost, flexibility, and compliance

Personnel Protocols, Certification, and Ongoing Cleanroom Maintenance

Effective cleanroom management rests on three pillars: personnel discipline, certification adherence, and systematic monitoring. Operators remain the largest source of contamination, with studies indicating that 60% of particulate breaches stem from improper gowning or procedural errors.

Sources of contamination in cleanrooms: Human shedding and procedural errors

Skin cells, hair, and respiratory droplets contribute to 85% of biological contaminants in classified environments, according to 2023 industry data. Minor oversights—such as inadequate glove sanitization or abrupt movements—can disrupt airflow and introduce particles.

Gowning procedures and entry/exit protocols for ISO-compliant operations

Multi-stage gowning using static-dissipative fabrics reduces particle shedding by 72% compared to standard lab attire. Airlock systems with timed entry sequences maintain pressure stability, while adhesive floor mats capture up to 90% of particulates from footwear before entry.

Cleanroom certification standards: ISO 14644, FS 209E, and IEST-RP-CC006.3

ISO 14644-1 mandates biannual recertification for ISO Class 5 and cleaner environments. Aerospace facilities often follow IEST-RP-CC006.3 for enhanced performance validation. Although largely superseded, FS 209E still influences 38% of North American semiconductor cleanrooms due to its detailed 0.1µm particle thresholds.

Routine monitoring and preventive maintenance: particle counters, filters, and HVAC systems

When real time laser particle counters work together with building management systems, they can tweak air changes per hour automatically if particles go over acceptable levels. Doing HEPA filter checks twice a year and cleaning HVAC coils every three months cuts down on microbes by about 64 percent in places making medicines. According to some big name manufacturers, companies save around seven hundred forty thousand dollars on average when they mix proper maintenance training with smart filter life predictions. The Ponemon Institute backed this up in their 2023 study.

FAQ Section

What is the main purpose of a cleanroom?

A cleanroom is designed to control environmental conditions by keeping out airborne particles like dust, bacteria, and chemical fumes. This is essential in sectors like pharmaceuticals and semiconductors where tiny bits of contamination can ruin products.

Which industries primarily use cleanrooms?

Three primary industries rely heavily on cleanroom technology: pharmaceuticals, semiconductors, and biotechnology. They require stringent precision and contamination control to ensure the integrity and safety of their products.

What are ISO cleanroom classifications?

ISO classifications range from Class 1 to 9, based on airborne particle concentration. Higher classes, like ISO Class 1, permit fewer particles and demand more rigorous controls.

How do air change rates impact cleanrooms?

Air change rates (ACH) impact contamination control as they influence the velocity and frequency of airflow, which aids in removing contaminants more effectively. Proper ACH levels balance cleanliness and energy efficiency.

What are modular and hard-wall cleanrooms?

Modular cleanrooms offer reconfigurable layouts and lower costs but may not provide the same contamination control as hard-wall cleanrooms, which offer superior sealing, required for higher ISO classifications.
